Vapor Barriers in Concrete Foundations

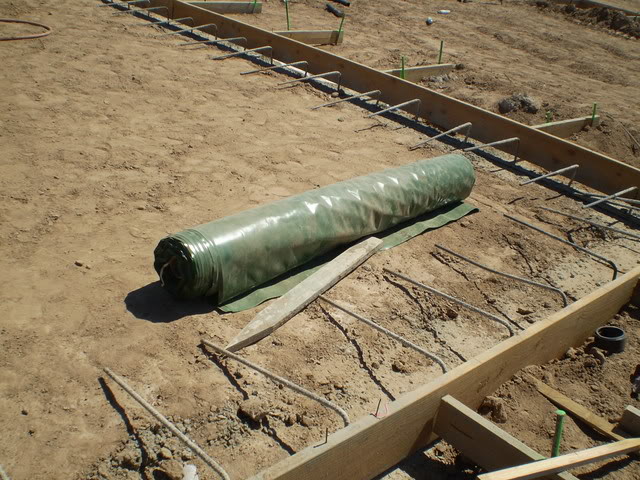

Photo credit: premier-az.com
A vapor barrier is the key to waterproofing under a concrete basement or slab. Without a vapor barrier, dampness can lead to a damp floor, indoor humidity and mold.
Vapor barriers are recommended even in dry climates. Soil always harbors moisture, and the drier air will pull out the moisture. Vapor barriers must be chosen and installed carefully underneath the concrete, and they may even have an additional use.
How to Choose a Vapor Barrier
Traditional vapor retarders are typically made of 6-mil (0.006 inch) polyethelene.However, as the name suggests, they only slow down moisture. The material also may not be strong enough to avoid tearing when laying the gravel base or concrete.
Look for a true vapor barrier with a permeance value below 0.3 perms. Some products have permeance values as low as 0.01. Many of the same top-quality barriers are 15 mils thick, which should be strong enough to prevent accidental tears.
How to Install a Vapor Barrier
Add a strong, impermeable vapor barrier under the concrete. It can be installed over or under the gravel base under a basement. For a foundation on slab, install the vapor barrier under the gravel base. Overlap pieces by at least 18 inches, with strong tape on the edge ofthe overlap.
If you lay the barrier directly over the gravel base, it may be more difficult to lay the concrete. The plastic blocks water from settling out of the concrete. Instead, add a layer of sand over the barrier. To further help block water, you may also need to add drains, waterproof wall coatings and possibly a sump pump during construction of the concrete slab.
Keep Vapor Barriers Under the Concrete
Avoid putting vapor barriers inside concrete basement walls or under concrete foundation floors. They can trap interior moisture in the wall cavity or under the floor. The sealed-in moisture can potentially promote mold on the framing, insulation and drywall.
Instead, use rigid foam insulation, which separates wood framing or flooring from wet concrete and rot. However, it is still semi-permeable, allowing moisture to escape.
Also, finish a basement with latex-based paint, which doesn't block moisture. Over a concrete foundation, use a thick plywood subfloor and wood or cork flooring. Vinyl traps moisture, and damp carpets can harbor mold.
Additional Uses for Vapor Barriers
A vapor barrier may also be useful if you have to pour concrete when the temperature is cold. Of course, the middle of winter is not the ideal time to pour concrete, but if you have to pour concrete in cold weather, at least try to keep the concrete from freezing. Cover the slab with a vapor barrier, then spread some insulation on top (such asa few inches of straw or hay.
Vapor barriers are an important part of concrete construction, but they must be chosen and installed carefully.
When planning concrete projects, you may be tempted to try the work yourself. Find out whether it's something you can handle or whether you're better off hiring a professional. The situation may depend on what type of foundation you have.
Author Steve Graham is an expert on green building who writes for several home improvement publications. He's full of great, practical home improvement answers, and incidentally, he's pretty funny-so send hima message.
